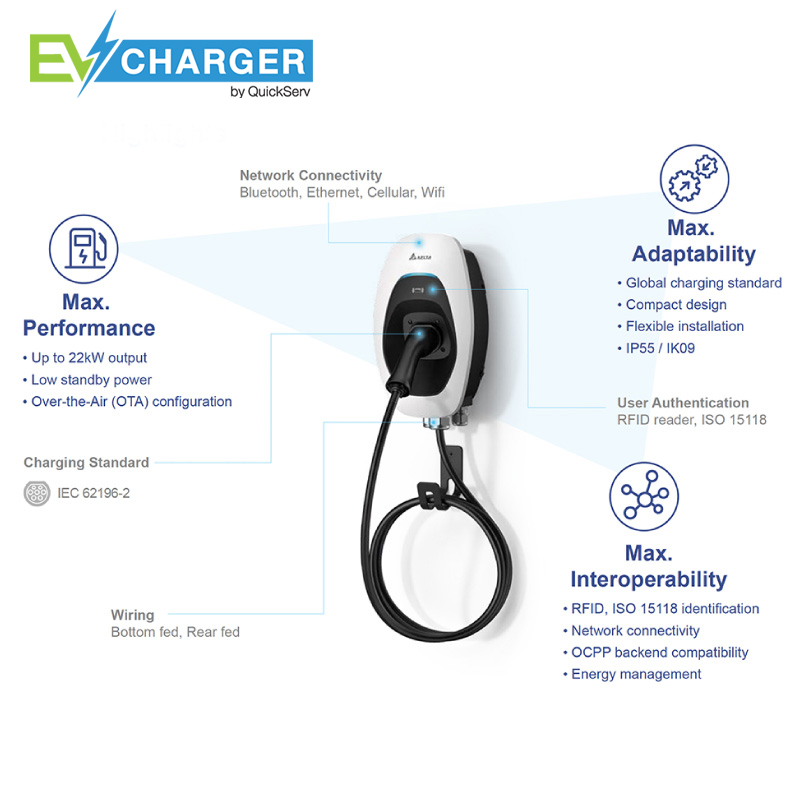

● 7.4kW AC charger improves parking turnover
● Network Interface : Bluetooth
● Low standby power consumption for energy-saving
● Remote management by built-in network connectivity
● OCPP compliance enables backend system integration
● IP55 and wallmount/stand installation provides high adaptability”
● User Application : Delta AC Max ( Android, IOS)
● Charging Cable Length : หัวชาร์จ Type 2 ความยาวสาย 5 เมตร
● Warranty 2 Years

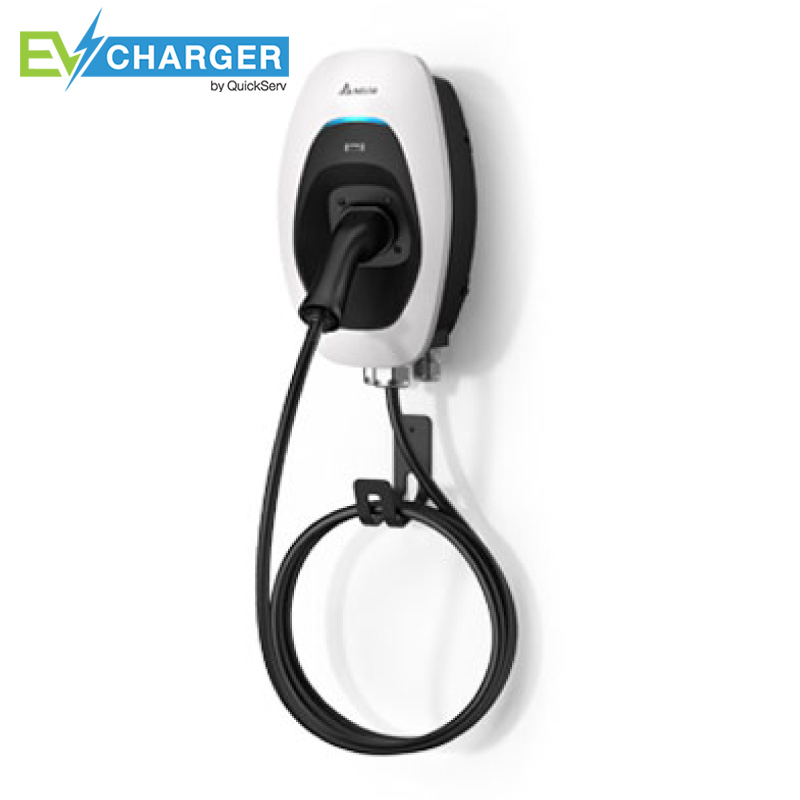

| Model | Delta AC MAX Basic 7.4kW 1-Phase |
| Power Input : | |
| Nominal Current | 32A |
| Grid Connection | Single-phase electric power (L1, N, PE) |
| Three-phase electric power (L1, L2, L3, N, PE) | |
| All AC MAX BASIC models support both single phase and three phase installations | |
| AC Voltage | 230 V |
| Frequency | 50 Hz / 60 Hz |
| Grounding Systems | TN, TT, IT |
| Terminal | Terminal block |
| Protection | Over current, Under voltage, Over voltage, Over temperature, Surge protection, Short circuit, Ground fault |
| Standby Power | 3.6 W |
| Charging Output : | |
| Nominal Power | Single-phase: 7.4 kW |
| Nominal Current | 32 A per phase |
| Connector Type | AC Type 2 Plug/ AC Type 2 Socket/ AC Type 2 Socket with shutter |
| Charging Voltage | 230 V |
| Cable Length | 5 m (models with AC Type 2 Plug charging interface) |
| Protection | RCD Type A (AC 30 mA), RDC-DD (DC 6 mA) |
| Compliance | IEC 61851-1, IEC 62196-2, IEC61008-1, IEC 62955 |
| User Interface : | |
| Display | Status LED, 4 colors |
| Authentication | Key switch |
| Charger Configuration | Maximum charging current selectable by 8-step hardware DIP switch |
| Network Interface : | |
| Bluetooth Protocols and Applications | Configuration, control, monitoring and firmware update |
| RS485 Protocols and Applications | ModBus RTU for energy management |
| Mechanical Properties : | |
| Ingress Protection (IEC 60529) | IP55 |
| Impact Protection (IEC 62262) | IK09 |
| Cooling | Natural convection |
| Dimensions* (W x H x D) | 218 × 371 × 167 mm ( 8.6 × 14.6 × 6.6 inch) |
| Weight* | 6.0 kg (13.3 lbs), including charging cable |
| Environmental Conditions : | |
| Operating Temperature Range | – 30 ºC to + 50 ºC (- 22 ºF to + 122 ºF) |
| Storage Temperature Range | – 40 ºC to + 80 ºC (- 40 ºF to + 176 ºF) 64:64 |
| Humidity | < 95 % relative humidity, non-condensing |
| Altitude | Up to 2,000 m (6,500 ft.) |
| Compliance : | |
| EU Low Voltage Directive | IEC 61851-1, IEC 62479 |
| EU EMI Directive | EN 61000-3-11 / -12, IEC 61851-21-2 |
